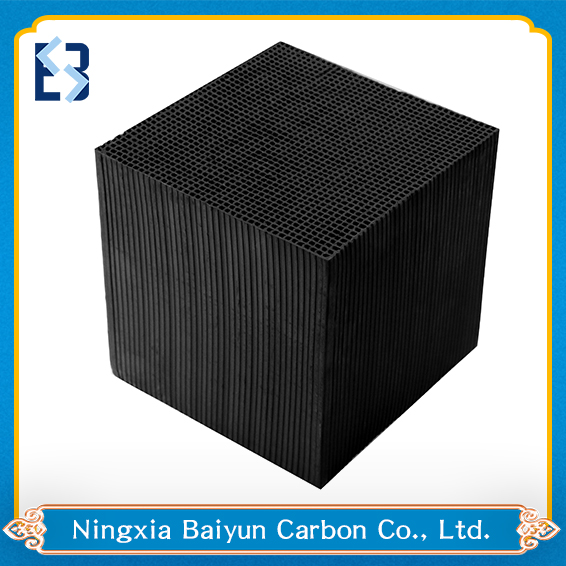

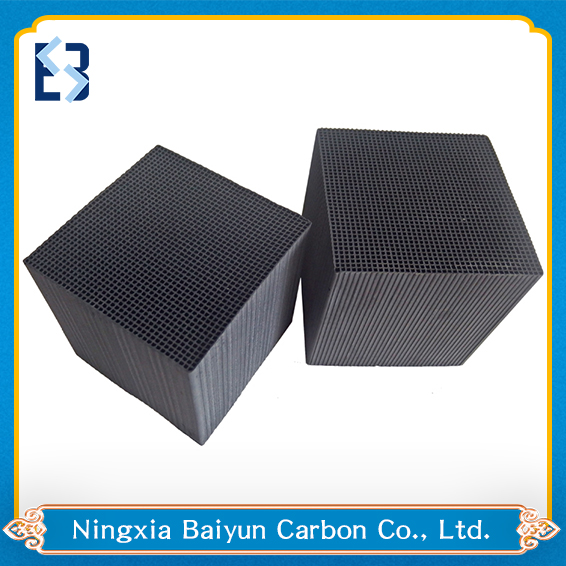

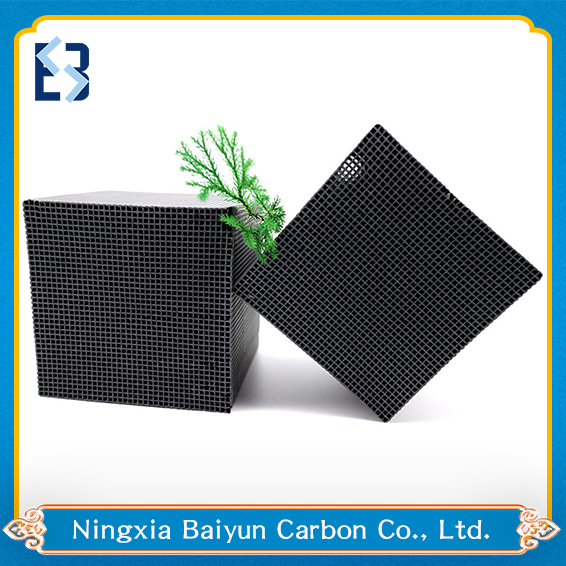

Honeycomb activated carbon
Honeycomb activated carbon is made of high-quality Taixi anthracite pulverized carbon as raw material, pressed by a honeycomb mold, and then activated and fired at high temperatures.
Honeycomb activated carbon characteristic:
Honeycomb activated carbon has the characteristics of relatively large area, small through-hole resistance, developed micropores, high adsorption capacity, and long service life. It is widely used in air pollution control. The honeycomb activated carbon adsorption method is selected, that is, the exhaust gas is in contact with the porous activated carbon with a large surface, and the pollutants in the exhaust gas are adsorbed and decomposed, thereby playing a purification role.
| Name | Index |
| Size（mm） | 50*50*100、100*100*50、100*100*100 |
| Iodine value（mg/g） | ≥950 |
| specific surface area（m2/g） | ≥1050 |
| CTC（%） | ≥65 |
| compression strength（mpa） | Gas phase cellular activated carbon> 0.8Pa, liquid phase honeycomb activated carbon> 1.2Pa |
| Moisture（%） | ≤5 |
| Square hole （in2） | 150 |
| Wall thickness （mm） | 1.0 |
| Desorption temperature（℃） | ≥120 |
| End-use temperature（℃） | ≤400 |
| Volume density（g/cm3） | 0.35-0.60 |
| Phenyl adsorption rate% | Dynamic adsorption≥37 |
| Phenyl adsorption rate% | Static adsorption≥52 |
| Gas speed of empty tower（M/S） | 0.8 |
| Hole density | 100 hole / sq., 150 hole / sq |
Honeycomb activated carbon packaging and shipping method:
1. 10*10*10cm is 18 pieces per box (carton box).
2. 10*10*5cm is 36 pieces per box (carton box).
Applications
Honeycomb activated carbon can be widely used in various gas purification equipment and waste gas treatment projects and the purification effect is good. The pollutants that can be removed in varying degrees with honeycomb activated carbon are nitrogen oxide nitrogen tetrachloride chlorobenzene diformaldehyde acetone ethanol ether methanol acetic acid ethyl ester styrene phosgene malodorous gas and other acids Alkaline gas.
